EchoMax XRS-5
Contact

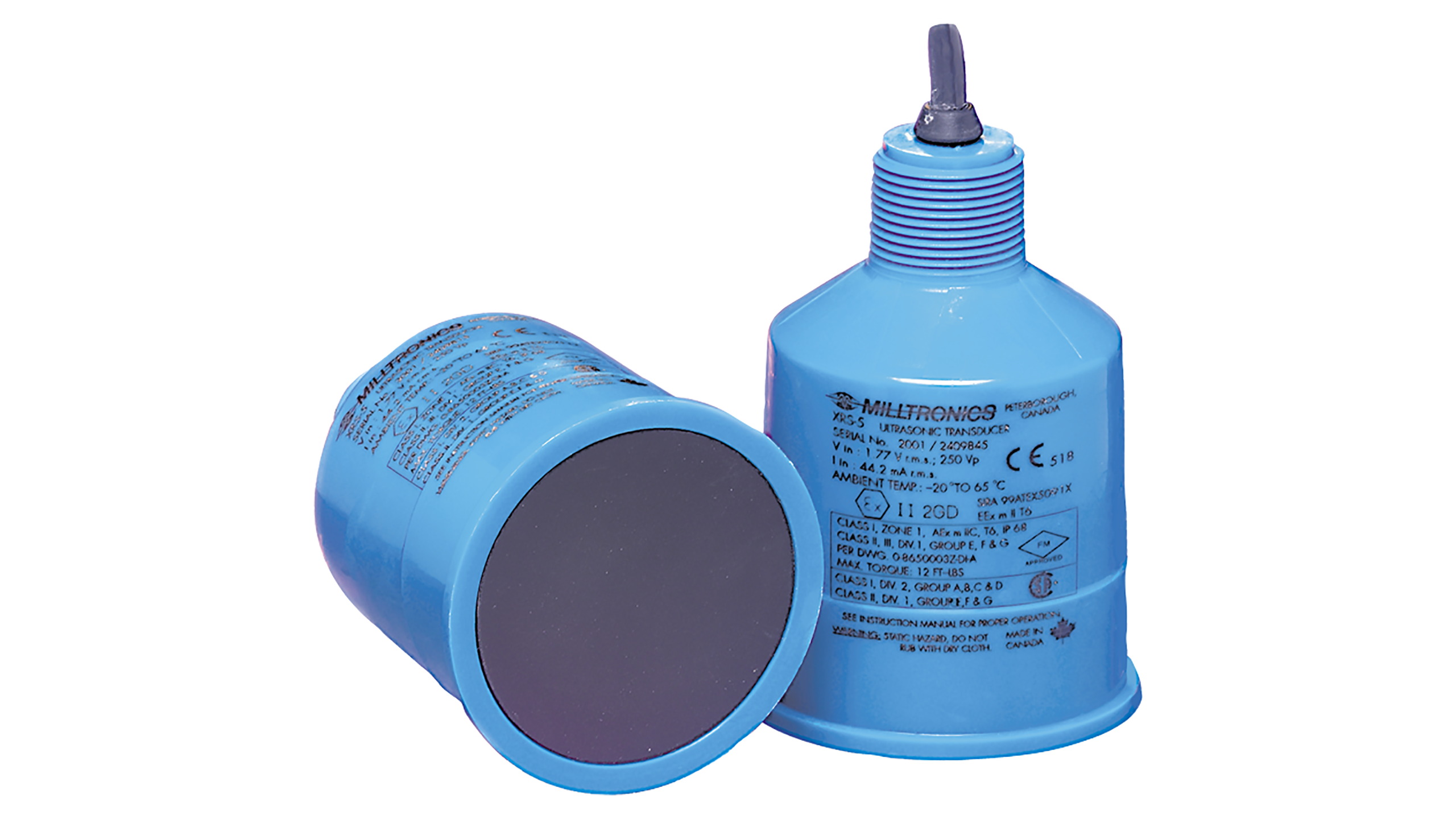

EchoMax XRS-5 is a short-range ultrasonic sensor for continuous, non-contact level measurement. With a narrow 10° beam angle, it performs accurately in confined spaces and challenging installations.
Key Features
-
Narrow 10° beam angle, ideal for confined spaces or environments with obstructions
-
Fully sealed PVDF copolymer housing with CSM rubber faceplate for superior chemical resistance
-
Measuring range up to 8 m (26 ft) for liquids and sludge
-
IP68 protection rating, enabling full submersion during flooding conditions
-
Easy installation with 1″ NPT or R 1″ BSPT threaded connections
Typical Applications
-
Pump wet wells
-
Open channels and flumes
-
Weirs and overflow structures
-
Filter beds
Technical Highlights & Environmental Resilience
-
Non-contact operation, unaffected by turbulence, foam, or obstructions
-
CSM rubber faceplate resists methane gas, saltwater, corrosives, and harsh chemicals—common in wastewater treatment
-
Optional submergence shield ensures continued accurate output during full submersion
-
Advanced signal processing algorithm ensures stable and reliable measurement
System Compatibility
XRS-5 is compatible with the full range of Siemens level controllers—from basic point-level alarms and simple pump control to advanced systems with communication, telemetry, and SCADA integration.
| Category | Details |
| Mode of Operation | |
| Measuring principle | Ultrasonic transducer |
| Input | |
| Measuring range | 0.3 … 8 m (1 … 26 ft), dependent on application |
| Output | |
| Frequency | 44 kHz |
| Beam angle | 10° |
| Accuracy | |
| Temperature error | Compensated by integral temperature sensor |
| Rated Operating Conditions | |
| Vessel pressure | Normal atmospheric pressure |
| Ambient temperature | -20 … +65 °C (-4 … +149 °F) |
| Storage temperature | -20 … +65 °C (-4 … +149 °F) |
| Design | |
| Weight | 1.2 kg (2.6 lb) (approximate shipping weight of sensor with standard cable length) |
| Material (enclosure) | PVDF copolymer enclosure and CSM face |
| Process connection | 1″ NPT [(Taper), ANSI/ASME B1.20.1] or R 1″ [(BSPT), EN 10226] |
| Degree of protection | IP65 / IP68 |
| Cable connection | 2-core shielded/twisted, 0.5 mm² (20 AWG), PVC sheath |
| Cable (max. length) | • 365 m (1,200 ft) with RG 62 A/U coaxial cable • 365 m (1,200 ft) with 2-core twisted pair, foil shield, 0.5 mm² (20 AWG), PVC sheath, only for MultiRanger 100/200 |
| Options | |
| Flange version | Factory flange with PTFE face for ASME, EN, or JIS configuration |
| Submergence shield | For applications with flooding possible |
| Certificates and Approvals | |
| CE, UKCA, RCM, KC CSA Class I, Div. 2, Groups A, B, C, D, Class II, Div. 1, Groups E, F, G FM Class I, Zone 1, AEx m IIC, T6 Class II, III, Div. 1, Groups E, F, G T6 ATEX II 2GD / UKEX II 2GD / IECEx / INMETRO Ex mb IIC T6 Gb, Ex tb IIIC T85°C Db |
