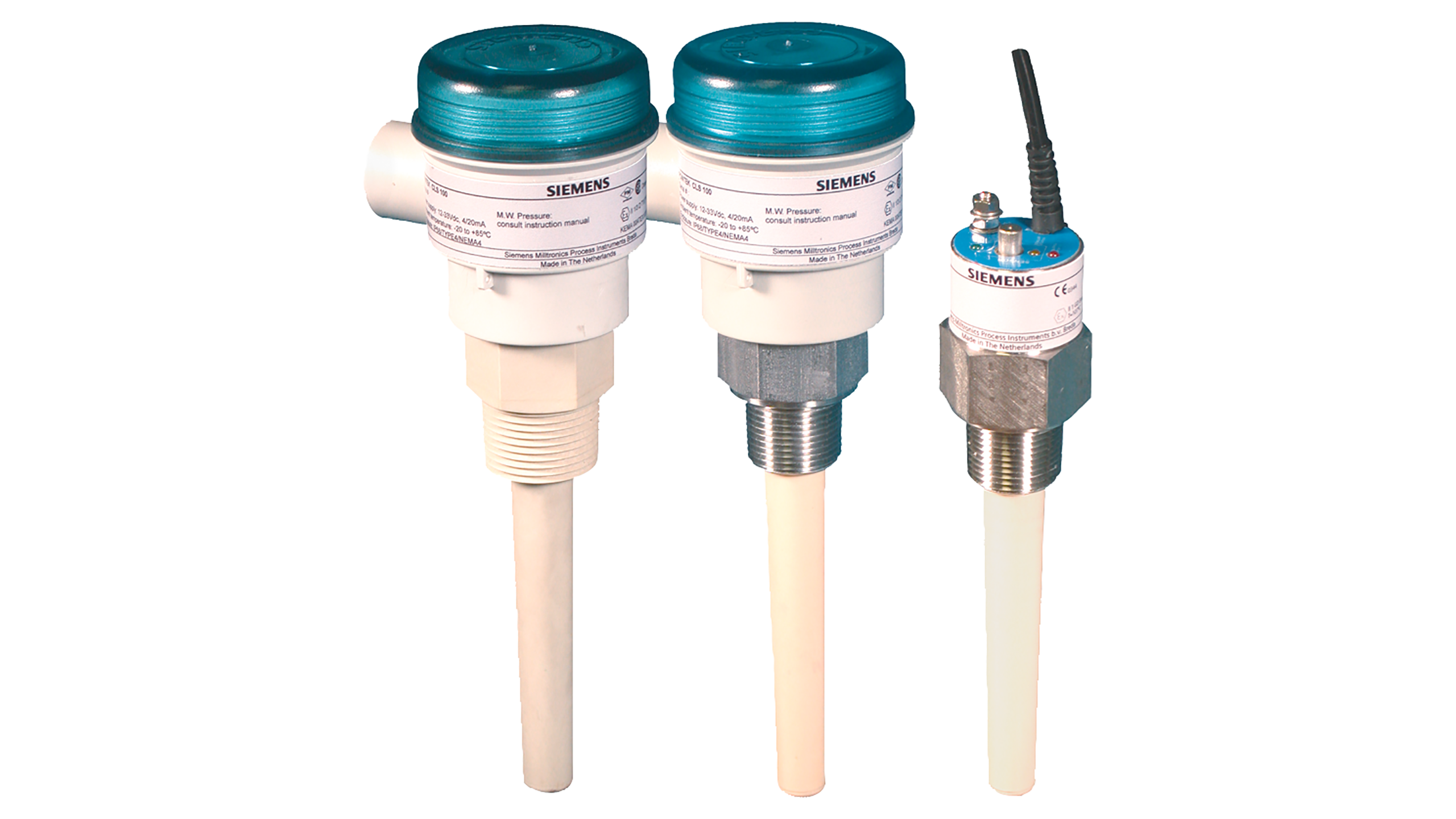

Pointek CLS100

Key Features

• Easy installation with integrated LED status indicator for quick operational verification

• No moving parts, resulting in low maintenance requirements

• Adjustable sensitivity for compatibility with a wide range of materials

• Multiple housing options: integrated cable, PBT enclosure, or all-polymer version

• Various safety classifications available: Intrinsically Safe, Dust Ignition Proof, and General Purpose

Typical Applications

• Level detection of liquids, slurries, and foams

• Suitable for powders, granules, and bulk solids

• Applied in food, pharmaceutical, and chemical industries

• Suitable for hazardous area installations

• Interface detection between two distinct media

• Installation in narrow pipes, small tanks, or high-vibration environments

Design and Materials

• Probe length: 100 mm (4 inch), ideal for space-constrained applications

• Probe constructed from PPS (optional PVDF) with excellent chemical resistance

• Operating temperature range:

  • -30 to +100 °C for model 7ML5501

  • -10 to +100 °C for model 7ML5610

• Fully potted design, resists vibration up to 4 g, suitable for use in tanks with agitation or mixing

• Optional SensGuard protective cap resists abrasion, impact, and shear forces in demanding applications

Configuration Options

• Integrated cable version: stainless steel process connection with PPS or PVDF probe

• All-polymer version: thermoplastic polyester housing with PPS connection and probe

• Standard version: thermoplastic polyester housing, stainless steel connection, PPS or PVDF probe
