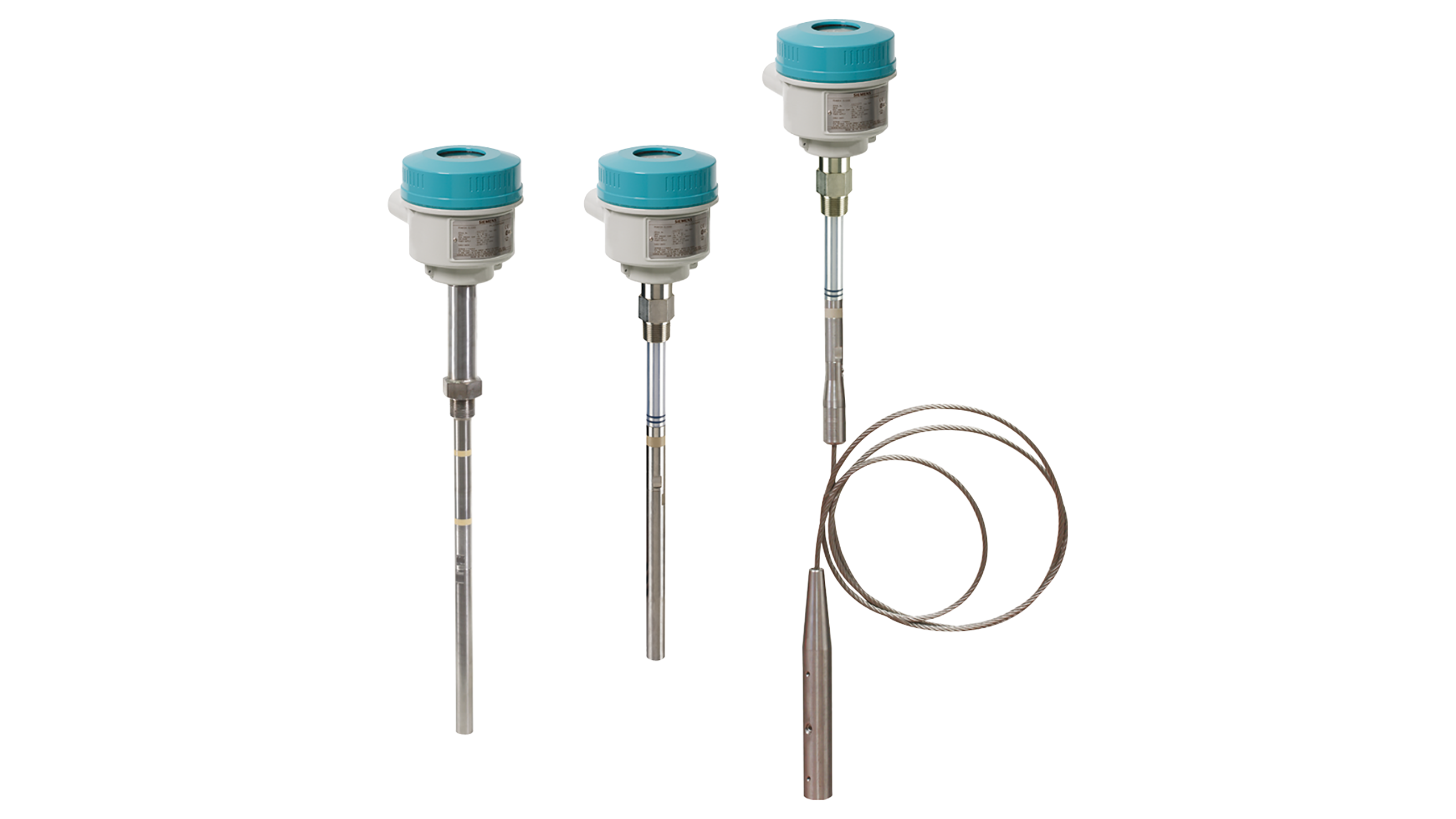

Pointek CLS300 (digital version) is a level switch for liquids, solids, slurries, foam, and interfaces in high temperature-pressure, corrosive, or abrasive environments. It features an LCD display, menu-driven setup, and PROFIBUS PA communication.

Zalo Hotline: 0961.67.69.69

Categories: Level, Point Level Measurement, RF Capacitance Brand: Siemens

Description
Specifications

Key Features

Active Shield Technology eliminates signal interference caused by buildup or long nozzle installations, ensuring high accuracy
Solid probe construction with exceptional abrasion resistance, ideal for coarse solids in mining or cement industries
Push-button calibration with full diagnostic support available on site
High sensitivity, suitable for liquids, solids, and slurries with both low and high dielectric constants
Integrated LCD display with intuitive menu navigation for easy configuration
PROFIBUS PA digital communication (Profile 3.0, Class B), compatible with SIMATIC PDM software
Fully encapsulated electronics protect against vibration, dust, and condensation

Typical Applications

Level detection of liquids, slurries, and bulk solids
Processes involving high temperature and pressure
Installations in hazardous areas
Used in mining, metals, and cement industries
Ideal for systems requiring digital communication and remote monitoring over PROFIBUS networks

Configuration and Materials

Wetted parts made from PFA-coated stainless steel, offering high chemical resistance
High-temperature version with ceramic and stainless steel components for extreme conditions
Modular design supports a wide range of:
- Process connections
- Probe lengths
- Approval standards
- Output options
Available in rod and cable probe versions, allowing easy integration into existing systems

Pointek CLS300 Digital – Technical Specifications

Category	Specification
Mode of operation	Inverse frequency shift capacitive level detection
Input	—
Measured variable	Change in picoFarad (pF)
Output	—
Output type	Solid-state output
Output configuration	Galvanically isolated
Protection	Against reversed polarity (bipolar)
Max. switching voltage	30 V DC 30 V peak AC
Max. load current	82 mA
Voltage drop	< 1 V, typical at 50 mA
Time delay (pre/post switching)	Programmable by user (0 … 100 s)
Fail-safe mode	Min. or max.
Electrical connection	Removable terminal block
Accuracy	—
Resolution (sensitivity)	1% change in actual capacitance
Max. temperature error	0.2% of actual capacitance value
Rated operating conditions¹⁾	—
Installation location	Indoor / outdoor
Ambient temperature	-40 … +85 °C (–40 … +185 °F)²⁾
Storage temperature	-40 … +85 °C (–40 … +185 °F)
Medium	Liquids, bulk solids, slurries, interfaces, and viscous applications
Minimum dielectric constant εr	≥ 1.5
Process temperature (Rod/Cable)	-40 … +200 °C (–40 … +392 °F)²⁾
Process temperature (High-temp version)	-40 … +400 °C (–40 … +752 °F)
Process pressure³⁾	-1 … +35 bar g (–14.6 … +511 psi g)
Design	—
Enclosure material	Powder-coated aluminum with gasket
Degree of protection	Standard: Type 4 / NEMA 4 / IP65 Optional: Type 4 / NEMA 4 / IP66
Cable inlet	2 × M20 × 1.5 thread (Option: 2 × ½″ NPT, 1 entry plugged)
Controls and displays	—
Local display	LCD
Configuration	• Local: 3-button keypad (standalone) • Remote: SIMATIC PDM (network)
Power supply	—
Bus voltage (at process connection)	Standard: 12 … 30 V DC Intrinsically safe: 12 … 24 V DC
Current consumption	12.5 mA
Certificates and approvals	—
General purpose	CSA, FM, CE, RCM
Dust ignition proof	ATEX II 1/2 D, 2 D, IP6X T100 °C
Flameproof enclosure with IS probe	ATEX II 1/2 G Ex d[ia] IIC T6 … T4 ATEX II 1/2 D T100 °C
Dust ignition proof with IS probe	CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4
Intrinsically safe⁴⁾	ATEX II 1 G Ex ia IIC T6 … T4 CSA/FM Class I, Div. 1, Groups A, B, C, D CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4
Non-incendive	CSA/FM Class I, Div. 2, Groups A, B, C, D CSA/FM Class II, Div. 2, Groups F, G
Non-sparking	ATEX II 3 G Ex nA IIC T4 or T6
Explosion proof with IS probe	CSA/FM Class I, Div. 1, Groups A, B, C, D CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4
Marine	Lloyd’s Register (ENV1, ENV2, ENV5)
Others	Pattern Approval (China)
Communication	PROFIBUS PA (IEC 61158 CP3 / CP3.2) Bus profile: IEC 61158-2 MBP (IS) Device profile: PROFIBUS PA profile for Process Control Devices v3.0, Class B, FISCO field device

Footnotes (without in-table superscripts):
When operating in hazardous areas, observe restrictions according to certificate. See CLS300 pressure/temperature curves.
Thermal isolator must be used if process temperature exceeds 85 °C.
Pressure rating of process seal is temperature dependent. See CLS300 pressure/temperature curves.
Intrinsically safe operation requires appropriate barrier or power supply
