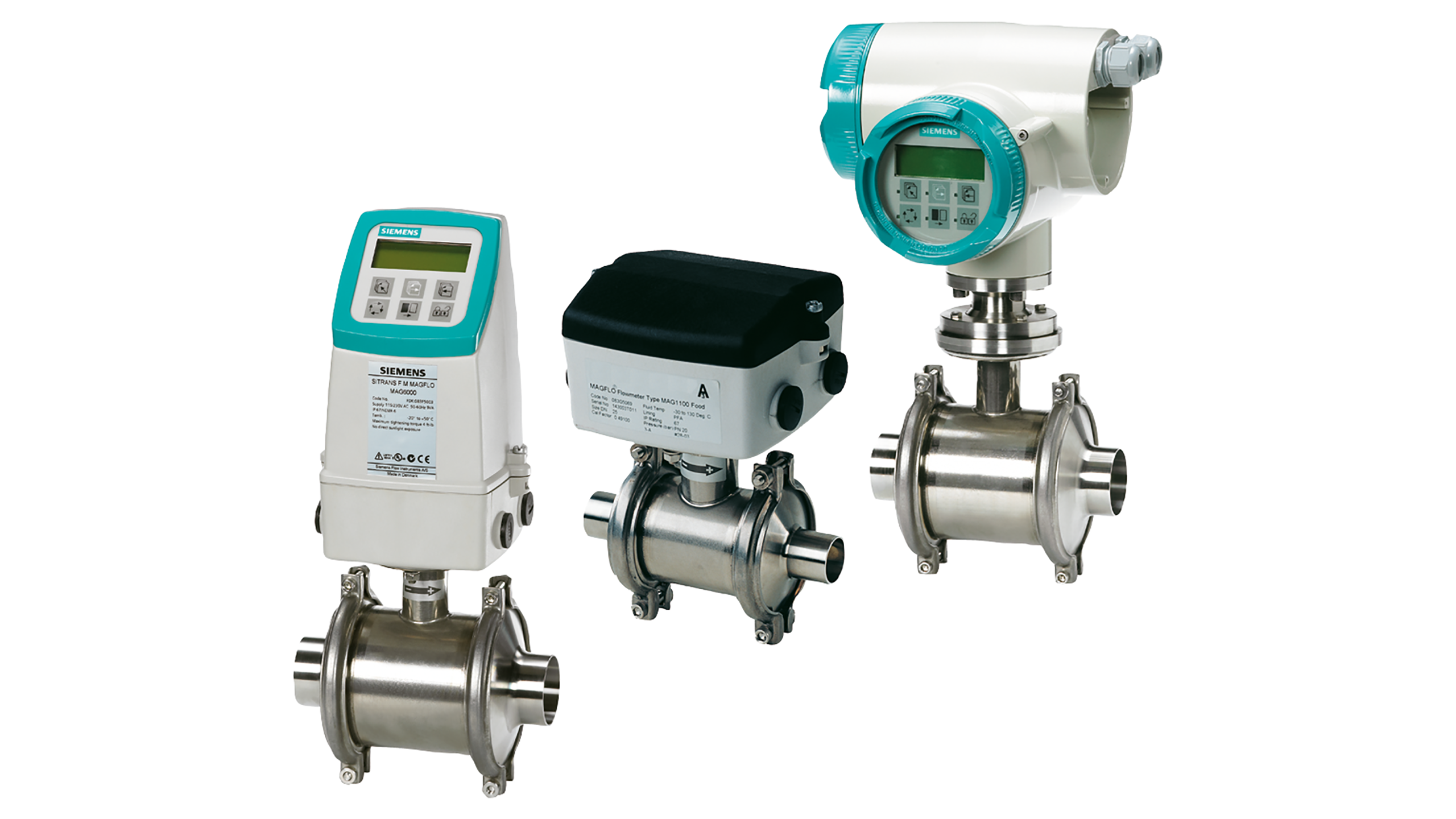

SITRANS FM MAG 1100 F

Contact

SITRANS FM MAG 1100 F electromagnetic flow sensor is specifically designed for applications in the food and beverage industry.

Zalo Hotline: 0961.67.69.69

SKU: N/A Categories: Electromagnetic, Flow, Sensor Tags: Công nghiệp đồ uống, Công nghiệp dược phẩm, Công nghiệp thực phẩm, Đồng hồ đo lưu lượng điện từ Brand: Siemens

Key Features

Sensor size range: DN 10 to DN 100 (3/8″ to 4″)
Housing made of AISI 316 stainless steel
Hygienic process connections certified to 3A standards
Hygienic design, suitable for CIP/SIP cleaning processes
Easy installation and operation with SENSORPROM™ technology for automatic configuration upload
Water ingress protection rated IP67 / NEMA 6
Patented in-situ verification enabled via data stored on SENSORPROM™

Application Areas

SITRANS FM electromagnetic sensors are ideal for flow measurement in:

Food industry
Beverage production
Pharmaceutical manufacturing

Technical Configuration

Sanitary mechanical design with a wide selection of hygienic process connections based on customer specifications
Flexible installation: can be mounted compact or remote and easily switched in the field via plug & play
Upgradeable to IP68 / NEMA 6P on-site using a dedicated terminal box
Explosion-proof version available for ATEX Zone 2G D hazardous areas (with ceramic liner)

Operating Principle

The flow measurement is based on Faraday’s Law of Electromagnetic Induction, whereby the sensor converts flow velocity into an electrical voltage proportional to the velocity of the liquid.

System Integration

A complete flow measurement system consists of the sensor paired with one of the following transmitters: SITRANS FM MAG 5000, MAG 6000, or MAG 6000 I. The USM II communication platform simplifies integration and enables upgrades to various fieldbus protocols, including:

PROFIBUS DP / PA
Modbus RTU / RS-485
HART
FOUNDATION Fieldbus H1
DeviceNet

Origin	Đức
Nguyên lý đo	Cảm ứng điện từ

MAG 1100 F
Measuring principle	Electromagnetic induction
Excitation frequency (Mains supply; 50 Hz/60 Hz)	DN 10…65 (3/8″…2½”): 12.5 Hz/15 Hz DN 80…100 (3″…4″): 6.25 Hz/5 Hz
Process connection
Nominal size	DN 10…100 (3/8″…4″)
Process connection	Hygienic adapters available for: Direct welding onto pipe Clamp fittingThreaded fitting</li></ul>
Rated operating conditions
Ambient conditions
Ambient temperature
• Sensor	–40…+100 °C (–40…+212 °F)
• Ex sensor	–20…+60 °C (–4…+140 °F)
• Compact with transmitter MAG 5000/6000	–20…+60 °C (–4…+140 °F)
• Compact with transmitter MAG 6000 I Ex	–20…+60 °C (–4…+140 °F)
Temperature of medium
MAG 1100 F (Ceramic)	–20…+150 °C (–4…+302 °F) Suitable for steam sterilization
MAG 1100 F (PFA)	–30…+130 °C (–22…+266 °F) Suitable for steam sterilization at 150 °C (302 °F)
Temperature shock
MAG 1100 F
• Duration 1 min, followed by 10 min rest
DN 10, 15, 25:	Max. ΔT = 80 °C/min (144 °F/min)
DN 20, 50, 65:	Max. ΔT = 70 °C/min (126 °F/min)
DN 80, 100:	Max. ΔT = 60 °C/min (108 °F/min)
Momentarily	Max. +100 °C (212 °F)
Operating pressure
MAG 1100 F (Ceramic)
DN 10…65:	Max. 40 bar (580 psi)
DN 80…100:	Max. 25 bar (363 psi)
MAG 1100 F (PFA)
Vacuum:	1×10⁻³ bar abs. (1.5×10⁻³ psi)
Max. pressure	Up to 20 bar (290 psi)
Mechanical load (vibration)	18…100 Hz random in x, y, z directions for 2 hours according to EN 60068-2-6 Sensor: 3.17 g RMS
Construction
Enclosure
MAG 1100 F	Stainless steel AISI 316L/1.4404
Terminal box (remote version only)
• Standard	Fibre-glass reinforced polyamide
• Option	Stainless steel AISI 316L/1.4436
Liner
MAG 1100 F (Ceramic)	Aluminum oxide Al₂O₃ (ceramic)
MAG 1100 F (PFA)	Reinforced PFA (Teflon) (not for Ex)
Electrodes
MAG 1100 F (Ceramic)	Platinum with gold/titanium brazing alloy
MAG 1100 F (PFA)	Hastelloy C276/C4/Alloy 22
Cable entries
Remote installation	2×M20 or 2×½” NPT
Compact installation	MAG 5000/MAG 6000: 4×M20 or 4×½” NPT MAG 6000 I Ex: 2×M25
Certificates and approvals
Calibration	Zero-point, 2×25 %, 2×90 %
Hazardous areas
MAG 1100 F (Ceramic)	ATEX, EAC Ex (Zone 1 Ex d ia IIB T6 Gb), ATEX (Zone 21 Ex tD A21 IP67)
MAG 1100 F (PFA)	FM (NI Class I Div. 2 Groups A, B, C, D)
Hygienic
MAG 1100 F (Ceramic and PFA)	3A (remote version with polyamide terminal box), EC 1935/2004
Pressure equipment	PED – 2014/68/EU
Others	EAC (Kazakhstan)
