SITRANS FM MAG 3100 P

Contact

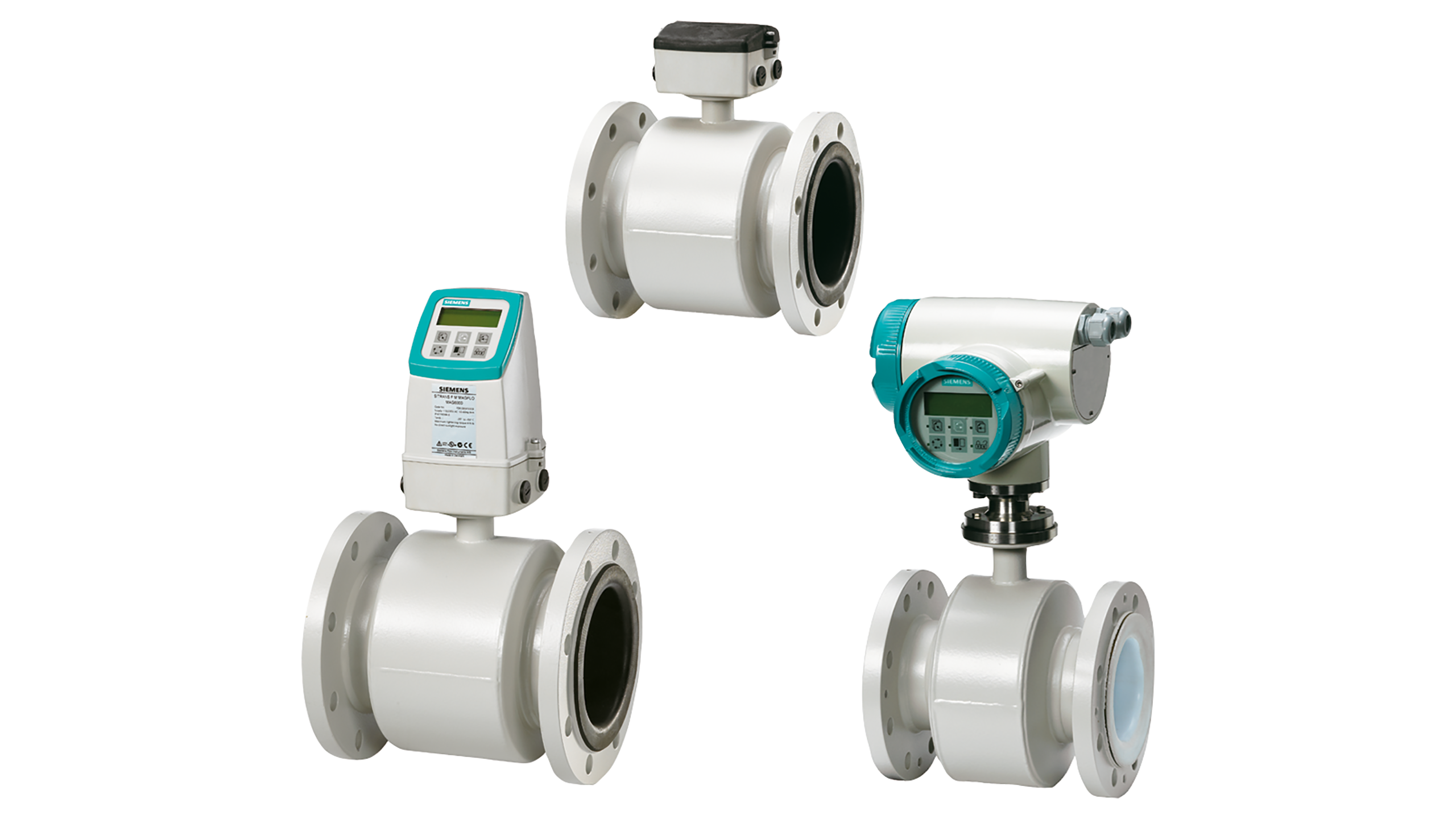

SITRANS FM MAG 3100 P is an electromagnetic flow meter designed to meet the most common requirements in the chemical and process industries.

Zalo Hotline: 0961.67.69.69
Categories: , Tags: , , , , Brand:

Key Features

  • Size range: DN 15 to DN 300 (½” to 12″)

  • Included in the Quick Ship Program (refer to PIA LCP documentation for lead time)

  • Widely used electromagnetic flow sensor in chemical and process industries, equipped with PTFE/PFA liner and Hastelloy electrodes

  • Outstanding chemical resistance

  • Certified for hazardous areas globally: ATEX, FM, CSA, IECEx

  • Explosion-proof versions available with 24 V or 115/230 V power supply, in both compact and remote configurations

  • Intrinsically safe analog output (ia-rated)

  • Comprehensive self-diagnostics, error alerts, and detailed error logging

  • Fully welded construction ensures durability in harsh environments

  • Easy installation and operation with SENSORPROM™ automatic configuration upload

  • Compliant with NAMUR NE 21, NE 32, NE 43, NE 53, and NE 70

Application Areas

The SITRANS FM MAG 3100 P is commonly used in:

  • Chemical industry

  • Process industry

  • Pulp and paper industry

  • Industrial wastewater treatment

Technical Configuration

  • Compact or remote installation options

  • Field-replaceable transmitter using plug & play architecture

  • High-temperature version available for media temperatures up to 150 °C (302 °F)

  • Complies with EEC Pressure Equipment Directive (PED) 2014/68/EU, with flanges according to EN 1092-1

  • Built to ISO 20456 structural length standards

  • Standard sensor can be upgraded to IP68 / NEMA 6P protection either at the factory or on-site

Operating Principle

The measurement is based on Faraday’s Law of Electromagnetic Induction, in which the sensor converts the flow of conductive liquid into a voltage signal proportional to the flow velocity.

Version MAG 3100 P
Product Characteristic Chemical and process industry-oriented (included in Quick Ship Program)
Nominal Size – PTFE: DN 15 … 300 (½” … 12″)
– PFA: DN 15 … 150 (½” … 6″)
Measuring Principle Electromagnetic induction
Excitation Frequency (Mains supply: 50 Hz/60 Hz) – DN 15 … 65 (½”… 2½”): 12.5 Hz/15 Hz
– DN 80 … 300 (3″… 12″): 6.25 Hz/7.5 Hz
– DN 200 … 300 (8″… 12″): 3.125 Hz/3.75 Hz
Process Connection
Flanges – EN 1092-1, raised face(1)
– DN 15 … 50 (½”… 2″): PN 40 (580 psi)
– DN 65 … 300 (2½”… 12″): PN 16 (232 psi)
– DN 200 … 300 (8″… 12″): PN 10 (145 psi)
– ANSI B16.5 (BS 1560), raised face
– DN ½”…12″: Class 150 or 240 (290 psi)
Rated Operating Conditions
Ambient Temperature (Conditions also depend on liner characteristics)
• Standard Sensor -40 … +100 °C (–40 … +212 °F)
• Ex Sensor –20 … +60 °C (–4 … +140 °F)
• Compact with Transmitter
– MAG 5000/6000 –20 … +60 °C (–4 … +140 °F)
– MAG 6000 I3) –20 … +60 °C (–4 … +140 °F)
– MAG 6000 I Ex3) –20 … +60 °C (–4 … +140 °F)
Operating Pressure
• PTFE DN 15 … 300 (½”… 12″): 0.3 … 40 bar (4 … 580 psi)
• PFA DN 15 … 150 (½”… 6″): Vacuum 0.02 … 50 bar (0.29 … 725 psi)
Enclosure Rating IP67 to EN 60529/NEMA 6P, 10 mH₂O for 30 minOption: IP68 to EN 60529/NEMA 6P, 10 mH₂O, continuous immersion
Pressure Drop at 3 m/s As straight pipe
Test Pressure 1.5 × PN (where applicable)
Mechanical Load (Vibration)  18 … 100 Hz random in x, y, z directions for 2 hours according to EN 60068-2-6

 Sensor: 3.17 g RMS- Sensor with compact MAG 5000/6000 mounted transmitter: 3.17 g RMS

 Sensor with compact MAG 6000 I Ex mounted transmitter: 1.49 g RMS
Temperature of Medium – PTFE: -20 … +150 °C (-4 … +302 °F)
– PFA: -20 … +150 °C (-4 … +302 °F)
EMC 2014/30/EU
Design See dimensional drawings
Weight See dimensional drawings
Flange and Housing Material Carbon steel ASTM A 105 with corrosion protection or stainless steel ASTM A 182 grade F316/F316L
Measuring Pipe Material Stainless steel AISI 304/1.4301
Electrode Material – PTFE: Hastelloy C276/2.4819, Tantalum
– PFA: Hastelloy C22/2.4602
Grounding Electrode Material Optional in Hastelloy C22/2.4602
Terminal Box (Remote Version Only) – Standard: Fibre glass reinforced polyamide
– Option: Stainless steel AISI 316L/1.4436
– Ex sensor: Stainless steel AISI 316L/1.4436
Cable Entries
Remote Installation 2 × M20 or 2 × ½” NPT
Compact Installation – MAG 5000/MAG 6000: 4 × M20 or 4 × ½” NPT
– MAG 6000 I Ex: 2 × M25 or 2 × ½” NPT
Certificates and Approvals
Calibration Zero-point, 2 × 25 % and 2 × 90 %
Hazardous Areas
• Ex-sensor in compact or remote version with MAG 6000 I Ex – ATEX, FM, CSA, IECEx, EAC, NEPSIZone 1 Ex d e ia IIC T6 Gb- ATEX, FM, CSA, IECExZone 21 Ex tD A21 IP67
• Standard sensor without/with MAG 5000/6000/6000 I – FM: XP IS Class I Div. 1 Groups A, B, C,D2)
– DIP Class II-III Div. 1 Groups E, F, G2)
– KCS: Zone 1 Ex d e ia IIC T6
• FM – NI Class I Div. 2 Groups A, B, C, D
– NI Class I Zone 2 Groups IIC
Pressure Equipment PED conforming: All EN1092-1 flanges- 2014/68/EU
Others – CPA (China)
– CRN (Canadian Registration Number)
– EAC (Kazakhstan)



Note:

  • (1) DN ≤ 600 Type 01 (SORF); DN > 600 Type 11 (WNRF).
  • (2) Compact version only.
  • (3) With HART communicator, max. ambient temperature 50 °C (122 °F).
