SITRANS FST070

Overview

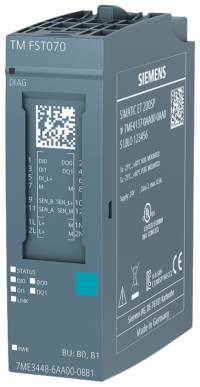

The SITRANS FST070 is a clamp-on ultrasonic flow measurement module specifically designed for seamless integration into the SIMATIC ET 200SP automation system. It supports the measurement of liquids, hydrocarbons, and gases with real-time data processing and simultaneous display of measurement values and operating status. The FST070 connects directly to FSS200 clamp-on sensors via the FS DSL interface module, eliminating the need for external signal converters and reducing integration costs.

Key Features

• Direct integration with automation platforms such as TIA Portal and PCS 7 (SIMATIC)

• Sensor selection and configuration directly within the TIA environment via the TIA Selector

• Predefined faceplates allow fast and convenient setup and access

• Eliminates the need for standalone signal converters between clamp-on sensors and automation systems

• Cost-effective solution for applications like water treatment, small-scale metering stations, and centralized monitoring with PCS 7

• Fully compatible with other modules in the SIMATIC ET 200SP system

• Fast and stable digital data transmission, with update rates up to 10 ms

• Certified for use in hazardous areas: ATEX Zone 2 / Class 1 Div 2, and Zone 0/1 / Class 1 Div 1 (when used with SITRANS I300)

Application Areas

FST070 is ideal for industries such as:

• Chemical industry

• Pharmaceutical manufacturing

• District energy systems

• Water and wastewater treatment

• Oil and gas industry

Technical Configuration

• Modular ET 200SP form factor, mountable alongside other ET 200SP modules in a control cabinet

• FS DSL cable connects directly to the ET 200SP base, providing both power and data communication

• FSS200 clamp-on sensors connect to the FST070 via FS DSL interface

• For ATEX Zone 0/1 installations, the SITRANS I300 safety barrier must be installed between the FST070 and FS DSL to ensure intrinsic safety

Core Functions

• Measures key process parameters:

  • Volumetric flow

  • Mass flow

  • Flow velocity

  • Density

  • Temperature

  • Pressure

  • Kinematic viscosity

  • Standard volumetric flow (hydrocarbon version)

• Integrated with three configurable totalizers for volumetric or mass flow measurement

• Two digital inputs and two digital outputs

• Low flow cut-off function

• Zero-point adjustment

• Upper/lower limit configuration for process alarms and fault reporting

• Full status feedback including diagnostics and error log
