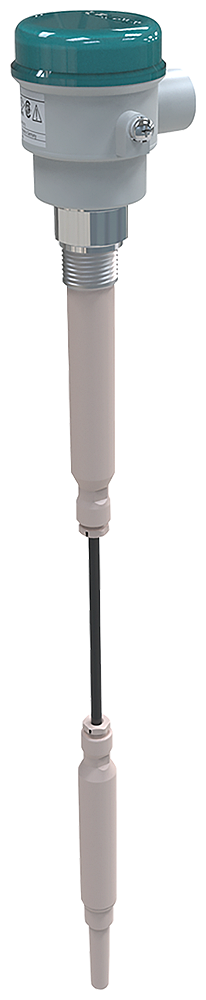

SITRANS LCS100

Overview

The SITRANS LCS100 is a compact point-level switch designed for detecting liquids, sludges, solids, foams, and interface layers. Its small form factor makes it ideal for tight installation spaces and supports either plastic or stainless-steel process connections. Available in both rigid rod and flexible cable probe versions, the device adapts to a wide variety of industrial applications.

It is suitable for overfill protection, high/low level alarms, pump control, and demand-based level switching.

Key Features

• Fully encapsulated, vibration- and shock-resistant design, ideal for use in mixing tanks or high-vibration environments

• Factory-calibrated, ready to use out-of-the-box with no field adjustment required

• Active Shield technology with buildup compensation for reliable performance in challenging media

• Optional IO-Link communication for remote diagnostics and integration into digital systems

• Available with engineering-grade plastic or stainless-steel housings, and convenient M12 connectors

Typical Applications

• Level detection in liquids, sludge, and foam

• Point level sensing for powders, granules, and bulk solids

• Suitable for food & beverage, pharmaceutical, chemical, and hazardous area environments

• Easily integrated into pipes, tanks, and silos, or automated control systems

Mechanical Design & Configuration

• Flexible probe lengths starting from 92 mm (3.6 in), customizable for specific applications

• Probe materials: PPS standard, optional PVDF or PEEK for high chemical resistance

• Operating temperature: –40 to +125 °C (–40 to +257 °F)

• Optional SensGuard sleeve protects against abrasion, mechanical impact, and shearing forces

• Process connections and housings available in stainless steel or polyester plastic
