SITRANS LR510
Contact

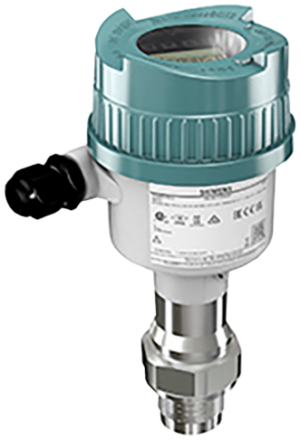

SITRANS LR510 is a compact radar level transmitter for continuous measurement up to 30 m, ideal for liquids and slurries. Its threaded connection and small form factor make it perfect for installations with limited space.
Key Features
-
-
Continuous level measurement up to 30 m with ±1 mm accuracy (IEC 62828 compliant)
-
Quick commissioning via 4-button HMI, SITRANS mobile IQ app (Bluetooth), or SIMATIC PDM software
-
Integrated graphical interface with echo profile display and backlit screen for field-friendly operation
-
Built-in IQ Guard function for device health monitoring, NE107-compliant diagnostics, and automated quality inspection reports
-
Advanced signal processing (Process Intelligence) ensures stability in environments with high interference
-
Auto False Echo Suppression and Near Range Suppression effectively eliminate noise from buildup on the sensor face
-
Digital communication via HART 7 protocol
-
Low power consumption and certified Environmental Product Declaration (EPD)
-
Optional Second Line of Defense (SLOD) for enhanced safety in hazardous or toxic media applications
-
Internal memory stores up to 100,000 data points for process analysis and optimization
-
API 2350 compliance for applications involving hazardous liquid storage
-
Typical Applications
The SITRANS LR510 is designed to serve a wide range of level measurement needs in industrial environments:
-
Liquids: chemical storage tanks, process vessels, water tanks
-
Sludge: wastewater treatment and industrial sludge handling
| Category | Specification |
| Mode of operation | |
| Measuring principle | W band FMCW radar |
| Measuring range | 0 … 15 m (0 … 49.2 ft) |
| Frequency | 80 GHz nominal |
| Beam angle | 8° |
| Power Supply | |
| HART | |
| • Voltage | 12 … 35 V DC |
| • Current | 4 … 20 mA |
| Communications | |
| 4 … 20 mA | HART 7.0 |
| Accuracy | ± 2 mm |
| Rated operating conditions | |
| Vessel pressure | -1 … +3 bar (14.50 … 43.51 psi g) |
| Ambient temperature | -40 … +70 °C (-40 … +158 °F) |
| Process temperature | -40 … +80 °C (-40 … +176 °F) |
| Storage temperature | -40 … +80 °C (-40 … +176 °F) |
| Design | |
| Weight | 0.5 kg (1.1 lb) |
| Material (sensor) | PVDF |
| Material (enclosure) | PBT |
| Process connection | 1-½” NPT, 1-½” BSPT, or 1-½” BSPP |
| Degree of protection | IP66/IP67 |
| Cable inlet | M20 or ½” NPT |
| Certificates and approvals | |
| General | CE, ATEX, IECEx, CFMUS, CCSAUS, EAC, NEPSI, FDA/EG 1935/2004 |
| Radio | CE, FCC, IC, Anatel, ICASA, NCC, KC, CITC, RCM, WPC, Telec, NBTC, MCMC |
| Water monitoring, flow | MCERTS Class 1 |
| Canadian Registration Number (CRN) | • British Columbia 0F22218.51
• Alberta 0F20596.2 • Saskatchewan 0F2002.3 • Manitoba 0F7032.4 • Ontario 0F22218.5 • Quebec 0F05183.6 • New Brunswick 0F1490.07 • Nova Scotia 0F1490.08 • Prince Edward Island 0F1490.09 • Newfoundland and Labrador 0F1490.0 • Yukon 0F1490.0Y • Northwest Territories 0F1490.0T • Nunavut 0F1490.0N |
| Programming | |
| SITRANS mobile IQ app | SITRANS mobile IQ is a Bluetooth app that provides an intuitive interface to quickly configure, set up and monitor SITRANS LR100 series. More info: siemens.com/mobileIQ |
| SIMATIC PDM | SIMATIC PDM allows for remote PC configuration and diagnostics (for installation on a network). |
| SITRANS DTM | – |
