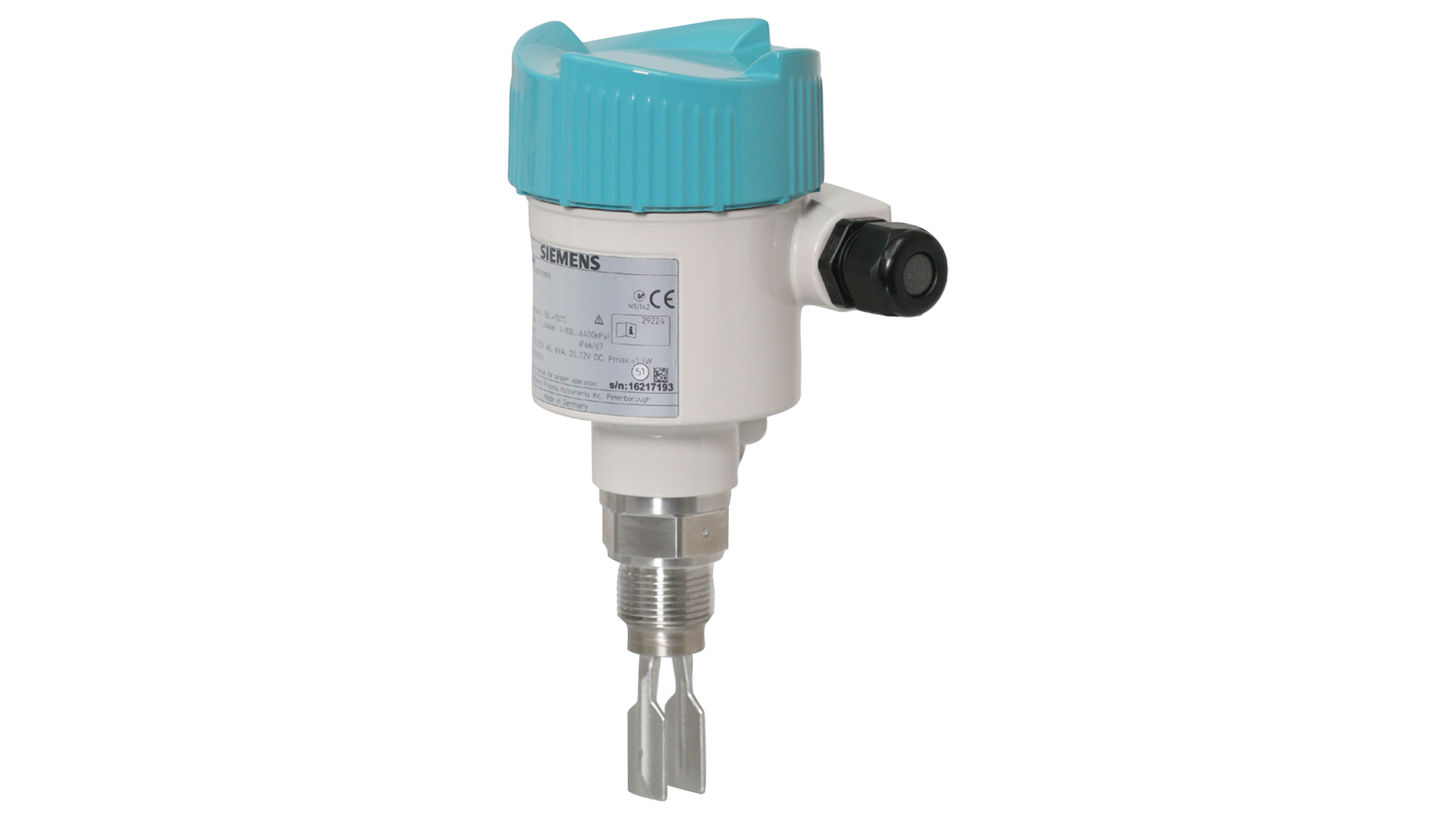

SITRANS LVL200

Key Features

• Proven vibrating sensor technology for highly accurate and reliable liquid level detection

• Short probe length: 40 mm (1.57 inch), ideal for installation in narrow pipes, small tanks, or confined spaces

• Continuous fault monitoring: detects severe corrosion, loss of vibration, or broken piezo drive wire

• Certified to SIL 2, suitable for safety-critical systems

• Optional hygienic process connections for food and pharmaceutical applications

• Compliant with API 2350 standards for hazardous liquid storage

• Optional remote signal conditioner allows periodic functional testing without removing the device

Typical Applications

• Level detection and monitoring of liquids or slurries

• Overfill protection, high/low level alarms, and dry-run prevention

• Performs reliably in demanding process conditions, including foam, turbulence, air bubbles, coating buildup, or external vibrations

• Used in safety-critical industries such as chemicals, oil & gas, and food processing

Operating Principle

The vibrating probe is excited by a piezoelectric actuator and oscillates at its resonant frequency (~1,200 Hz). When the probe comes into contact with liquid, the vibration frequency shifts. This shift is detected by the integrated oscillator, which triggers the output switch. The onboard electronics then process the signal and control the connected output devices accordingly.
