ST-H

Contact

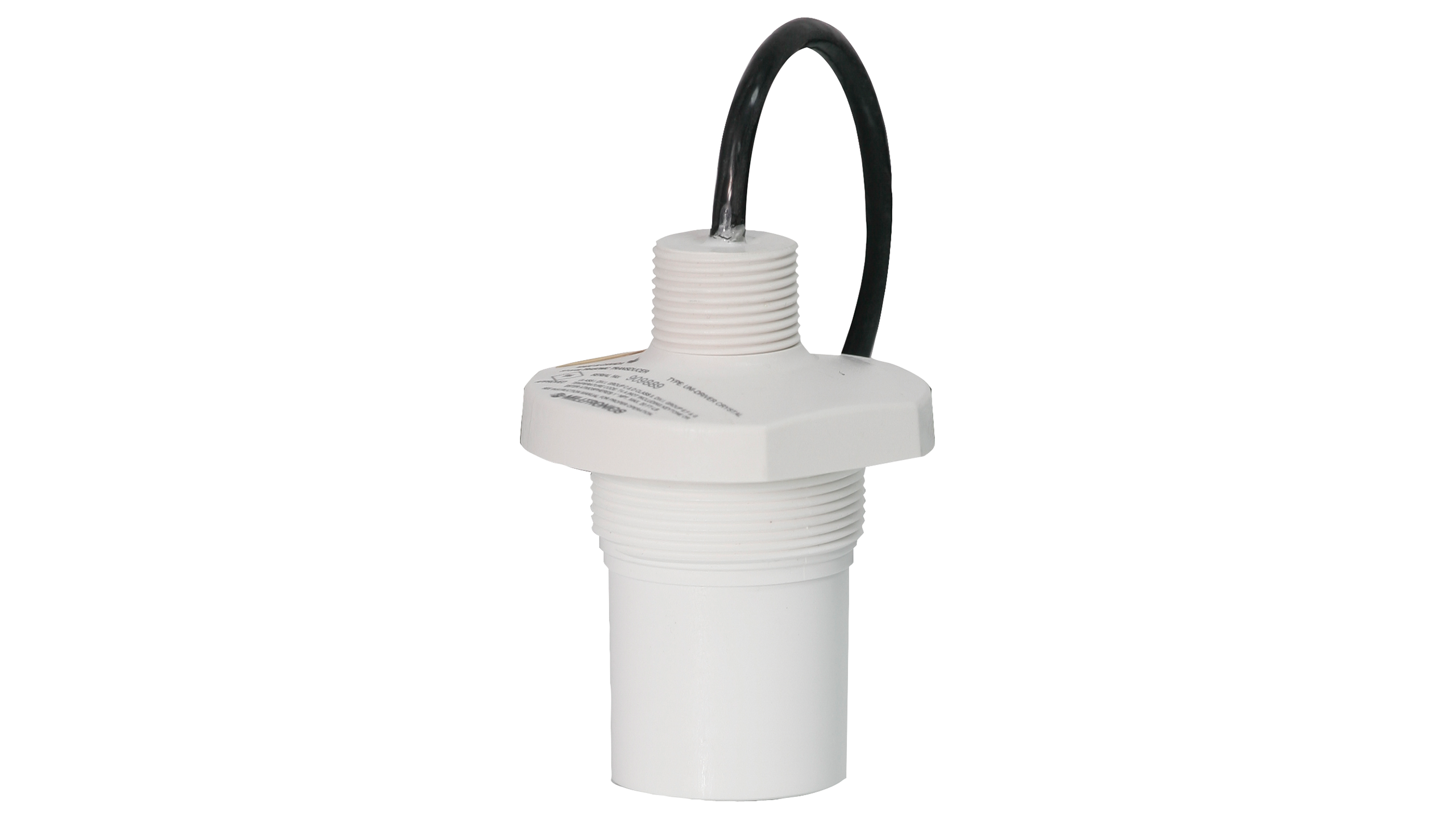

ST-H is a compact ultrasonic sensor designed for level measurement in chemical tanks and standard liquid containers. It offers high accuracy and reliable performance in harsh operating environments.

Zalo Hotline: 0961.67.69.69

Categories: Level, Transducer, Ultrasonic Tags: Bồn chứa chất lỏng công nghiệp, Bồn chứa hóa chất, không gian hẹp, môi trường có tính ăn mòn cao Brand: Siemens

Description
Specifications

Key Features

Compact design suitable for installation in narrow standpipes
Corrosion-resistant construction, ideal for chemical environments and harsh conditions
Integrated temperature sensor for automatic compensation of temperature-induced errors
Non-contact measurement ensures long service life and minimizes maintenance costs

Mode of Operation

During operation, the ST-H sensor emits a narrow ultrasonic pulse beam perpendicular to the sensor face. The device measures the transit time of the pulse—from emission to the reception of the echo reflected from the liquid surface—to calculate the distance.

Temperature-induced variations in the speed of sound are automatically compensated by the integrated temperature sensor, ensuring high accuracy over a wide range of conditions.

Typical Applications

Chemical storage tanks
Industrial liquid storage tanks
Installations in narrow spaces or highly corrosive environments

ST-H – Technical Specifications

Category	Specification
Mode of Operation
Measuring principle	Ultrasonic transducer
Input
Measuring range	0.3 … 10 m (1 … 33 ft)
Output
Frequency	44 kHz
Beam angle	12°
Accuracy
Temperature compensation	Compensated by integral temperature sensor
Rated Operating Conditions
Pressure	Normal atmospheric pressure
Ambient Conditions
Ambient temperature	-20 … +60 °C (-5 … +140 °F) (ATEX and UKEX approved model) -40 … +73 °C (-40 … +163 °F) (CSA/FM approved model)
Storage temperature	-20 … +60 °C (-5 … +140 °F)
Design
Weight¹⁾	1.4 kg (3 lb)
Material (enclosure)	Base and lid made of ETFE or PVDF (epoxy fitted joint)²⁾
Process connection	2″ NPT [(Taper), ASME B1.20.1], R 2″ [(BSPT), EN 10226], or G 2″ [(BSPP), EN ISO 228-1]
Degree of protection	IP68
Cable connection	2-core shielded/twisted, 0.519 mm² (20 AWG), PVC sheath
Cable (max. length)	365 m (1,200 ft) with RG 62 A/U coaxial cable
Options
Flange adapter	3″ Universal (fits DN 65, PN 10, and 3″ ASME)
Certificates and Approvals
	CE, UKCA, RCM, KC CSA Class I, II, III, Div. 1, Groups A, B, C, D, E, F, G T3 (ETFE only) FM Class I, II, Div. 1, Groups C, D, E, F, G T4A ATEX II 2G Ex mb IIC T5 Gb UKEX II 2G Ex mb IIC T5 Gb INMETRO Ex mb IIC T5 Gb

Note:

1) Approximate shipping weight of transducer with standard cable length

2) When measuring chemicals, check compatibility of ETFE or PVDF and

epoxy, or mount joint external to process.
